Wednesday, December 31, 2008

My 2008 Year in Review

My 2008 year in review

January

Started the year off on the east coast. I spent New Years in Washington,DC with the Mischief guys. The day I got home, my 240 got shortened by a Suburban. I went to the NHRA museum in Pomona, CA.Went and saw the FNF4 garage. Supaca Imports came and went. Some R34 GT-R's and S15 got seized. Watched some cars drag racing at Fontana. Gas was only 2.99 per gallon .The Gucci Cadillac was waiting for Bdubb. He eventually bought it and we drove it to Chicago.

February

Started on the trip planning to Chicago in the Gucci Caddy. Loading up the Caddy in MDR. It was cold on the trip. This says 16 F. Just after that, we hit a retread on the freeway, which pushed the torque converter cover into the torque converter. It sounded bad, but a few minutes later in the freezing cold it was off. We made it to Chicago in the Gucci Caddy. No problems. No tickets, not even a second look. We didn't even have license plates on the car. Another idiot - the Skyline King. They never go away, new ones just pop up. D1 cancels its 2008 series in the US ? Go karting at Kart Factory, which from reports is closed now. Its location was a little out of the way and hidden.

March

Worked on the car lot at Inland Wholesale Auto Center, Bloomington ,CA. Supaca came back with more, and more. I went and tried to visit them in their "office". Then Drift Tuners from Canada decided to be idiots too. Import cars regardless if they are legal or not. The Jspec Connect R35 GT-R went on the dyno. Josh's R33 GT-R was in a movie - Street Racers. Diesel got expensive 4.39 a gallon. Saw a Bugatti Veryon in the parking garage at the building. R32,R33,R34,R35 GT-R's went to HIN LA. A GT-R got stolen from a car dealer in Canada and was recovered by the interweb. Cleaned up a garage. Bdubb had a party with a hot dog cart.

April

GT-R's at Universal City Nissan. Gas was $4.05. Moving trucks are slow. Did a little more FNF4 stuff. Sent an Airstream aluminum trailer to Australia on a flat rack. Worked on Targa Newfoundland GT-R planning, but ran out of time and money for 2008.

May

R34 GT-R Service Manual in English.Saw the 2009 Nissan Maxima at Stillen.

June

The Street Racer movie that Josh's R33 appeared in came to DVD. After 17 years the F150 was not the top selling vehicle in the US. Went to Cars and Coffee. I got my R35 GT-R. NOPI canceled Colorado and Utah events. I found R35 GT-R's at the port in Long Beach. More illegal Skylines were seized. More GT-R's were seized in Florida.

July

Formula Drift didn't like Skylines. 0-60 article on Motorex was released. An R35 GT-R was following an R35 GT-R. Four GT-R's got loaded for the trip overseas. NOPI canceled the nationals and the rest of their events. Went to Arizona to buy an R35 GT-R. Cobb R35 GT-R vs FAS R34 at Time Attack. Went to the Top Gear pilot filming.

August

Went to HIN Night shift at Pomona with a few GT-R's. The Fast and Furious 4 trailer was released.

September

Went to NASA Nationals, towing Dan's Scion. Mid Ohio tried to kill me. Or the tail end of Ike tried to kill me actually. Saw a Chevrolet Volt.

October

Ran Jeffs car on the dyno. Took it down the 1/8th mile at Irwindale. Saw some horses race each other at Santa Anita park. Import Tuner magazine had a 10th anniversary party. November was going to be a busy month. Turbo Magazine was killed off by Source Interlink. I cut a GT-R pumpkin for Halloween.

November

Went to SEMA. There were 24 R35 GT-R's at the show Went to Time Attack. Matt Andrews won the RWD Street, and RWD Modified classes Went to Red Bull Drifting. Went to the LA Auto Show. Source Interlink killed Sport Compact Car Magazine. Another one bites the dust. SCC will be missed. Went 11.0@131 mph in Jeffs R32.

December

Super Lap Battle Results. Started selling R35 GT-R Service Manuals on CD. Fast and Furious 4 releasing April 2009 . DriftTuners popped up again talking big talk. They faded away pretty quickly when we called their bluff. RB30's. An R35 GT-R went 10.53. The seven quickest 1/4 mile Nissan GTR's in the US. 12 R35 GT-R's went to Buttonwillow. No transmissions broke.

Oppose "Cash for Clunkers" Legislation

Washington lawmakers are drafting a large economic stimulus package to help create jobs and rebuild infrastructure. They want to include a nationwide scrappage program which would give U.S. tax dollars to consumers who turn-in older cars to have them crushed, as a misguided attempt to spur new car sales. The lawmakers need to scrap this idea.

The stimulus package is being drafted right now. House Speaker Nancy Pelosi (D-CA) wants to introduce the bill on January 6 and have it approved by Congress by January 20, so that President Obama can sign it into law after he is inaugurated.

Contact House Speaker Nancy Pelosi IMMEDIATELY To Oppose Cash for Clunkers!
Call: 202-225-0100
Click here to send an electronic message: http://speaker.house.gov/contact/

Talking Points
Feel free to use any of the statements below as a starting point for your message to Speaker Pelosi.

* I am [calling/writing] to urge lawmakers not to include a “Cash for Clunkers” provision in the economic stimulus bill. Owners who turn in vehicles for crushing would receive a "minimal" payment to purchase a new car. This is a misguided attempt to spur car sales and claim that the country’s air quality or fleet fuel mileage is being improved.

* I work for [company name] located in [city and state]. My company is part of the specialty automotive industry, an industry which enables consumers to enhance their vehicle’s appearance, performance, comfort, convenience and safety. “Cash for Clunkers” programs deny our small businesses the availability of older cars necessary to develop and market their products and services. The programs will hurt my company and our customers.

* “Cash for Clunkers” programs threaten enthusiasts nationwide with the loss of valuable parts and parts-cars for repair, restoration, and customization projects. The programs also risk destroying classic, historic and special-interest vehicles, our American heritage.

* Cars turned in for scrappage often barely run, or are rarely-driven second or third vehicles that have a minimal impact on overall fuel economy or emissions.

* “Cash for Clunkers” programs will reduce the availability of affordable transportation and repair parts used by low-income drivers. It will also compete with the Salvation Army, the Purple Heart and other charities that rely on vehicle donations to raise money.

* “Cash for Clunkers” ignores better policy options. If Congress wants to act, support for repair and upgrade is a better choice and a win-win for consumers, dealers, manufacturers and repair shops. Significant emissions and fuel economy improvements can be achieved in older vehicles through relatively simple and inexpensive means: repaired/replaced exhaust systems, tune-ups, etc.

* We hope we can count on you to reject “Cash for Clunkers.” Thank you for your consideration on this very important matter.

If you choose to send a message to Speaker Pelosi, please send a copy of your message to SEMA also:
E-mail: briand@sema.org
Fax: 202/783-6024

dog head mounted

Tuesday, December 30, 2008

Nissan GT-R Diecasts

GT-R Diecasts

RB26DETT , RB26 Parts

RB26 parts for sale

RB26 , RB26DETT parts

In Car Video - JIC/Ziel R35 on Buttonwillow.

Sorry for the hand held camera. My mount just wasn't going to work. John from JIC was hustling the car around the track.

The car was doing around a 2:00 with a passenger. Thats pretty fast for Buttonwillow race 13cw.

It was a fun day. Next time maybe even a couple of heritage GT-R's will show up

Turbocharger Glass Art



For all my friends out there, that have a medical condition, or want some nice turbocharger glass art. I found this over on the TigerLife Blog.

“I started out making this for fun, then I posted it on dsmtuners, Honda tech and the srt forums. I got alot of positive feedback and sold about 20 of them. I can make them as just paper weights or “function art” if you get my drift.

I am selling them for $60 shipped. Sent money via paypal to imeyer85@yahoo.com. Please include if you want the “functional art” version or the normal (paper weight one), your forum name, and what forum you are from.
Thanks
Ian

Some nice glass art. I know some of the turbo fans out there, have that prescription for legal weed. Here in California its turning into a fairly big industry.

Monday, December 29, 2008

Buttonwillow R35 GT-R Trackday

A dozen Nissan R35 GT-R's made it out to the track day today at Buttonwillow Raceway Park in Buttonwillow, CA. It was a fun day for all. We had a lot of laughs and a good time. No major offs. No major issues. No broken transmissions. At least a couple cars under 2 minutes. I took a few pictures with the point and shoot. I also took some videos outside, and inside John from JIC/Ziel Motorsports R35 GT-R. I was hand holding the camera, so the video will probably make you sick. Its was a fairly intense ride trying to hold the camera, and hold on.

It was chilly in the morning. I saw the temperature as low as 31 degrees on my trip up. Over the grapvine at around 4000 feet there was still a little snow on the mountains.

Coming up soon some videos, and pictures.

buttonwillow

gtrs at buttonwillow

gtrs at buttonwillow

buttonwillow

freezing

Sunday, December 28, 2008

Dyno Tests Gone Wrong

You Tube , harbor for internet mechanics and vehicle identifiers.
I put up a video of Essexs car a couple years ago.Its a 1000hp at the wheels car. XS took the front driveshaft out of it, to make it rear wheel drive. All wheel drive cars, big power all wheel drive cars on a dyno are a little sketchy. They move around a lot,you have to be careful. Just about one in ten people sees this video and says "thats not a GT-R, its a GTS, its rear wheel drive." Overall, doesn't really matter. The car laid down over 1000hp to the wheels,but it just irks me a little bit. Maybe more than a little bit.

400 hp Eagle Talon breaking a strap and coming off the dyno

A few more cars coming off the dyno. Another reason I like the Dynapack dyno. Take the wheels off and get them out of the way. They are quieter, and they stow nicely in the corner when you aren't using them. 1000hp car comes off the dyno. This one is pretty crazy. That block did about nothing to stop the forward progress of this car.

Marios old car. Walking up on the rollers.

Supra coming off a dyno

Saturday, December 27, 2008

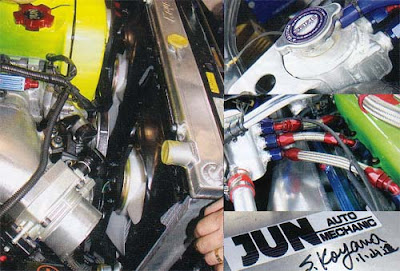

JUN RB26 Cooling System Modifications

JUN's modifications to the RB26 cooling system in order to help vent bubbles from the high side of the engine. The RB26 is tilted and the high side of the engine has a tendency to trap air.This is the fairly complicated way to help remove the air from the high side. This setup requires a single throttle body, as they drill and tap the cylinder head to relieve water direct from the head.

,

RB26DETT Cooling system modifications

Friday, December 26, 2008

RB26DETT Water Pump : N1 vs Stock

This is a photo comparison of the RB26 N1 water pump vs the stock water pump

aadaae

The top bolt hole is the only issue with some blocks. If you have a N1 block , then you will not have to worry about this top elongated hole. If you have a stock block, you will need to see if this intrudes into the water jacket. Several people have installed a N1 water pump, and then had water weeping from this hole. Check it, fill it if you want to be sure. I have used epoxy and a straw to fill it in. You could weld it up if you want, although be careful with warping.

These pictures show the differences in the impeller design between the standard water pump and the N1 water pump. The N1 pump has a backing plate that helps reduce high rpm cavitation.

  aac aab

Buy RB26DETT Water pumps here.

Wednesday, December 24, 2008

mariachi christmas party



I bet you didn't have Mariachi at your Christmas party. I went to my sisters friends Christmas Party, and they had an interesting mix of people.

Monday, December 22, 2008

Quickest 1/4 mile Nissan GT-R’s in the US

0612_turp_04z nissan_skyline_gtr_r33 engine_viewThese are the quickest Nissan GT-R’s that I know of in the US. Apexi’s R33 ran 8.47@165 , Signals R33 has run into the 8’s, a few other Japanese demo GT-Rs have run also, but they are not included in this list.

If you have one to add, email me.





  Time GT-R Location Turbo Trans Power
#1 9.53 @ 157 mph
Diemans R33 Wichita International Raceway Twin 3240’s HKS 1133 awhp
#2

9.73@145 mph

Mikes R33

  Twin RX6 Holinger ~940 whp
#3 9.77 @145 mph Aki R32 Fontana,CA T51R SPL HKS ~900 whp
#4 10.3@138 mph SP Engineering R33 Famoso,CA T51RSPL Holinger ~975 whp
#5 10.31@131 MVP GT-R R35 Texas SSP Stock ~600 whp
#6

10.36@135mph

Scott Joule – R32 Arizona T51R SPL Stock 5spd 850whp
#7 10.42@137 mph
XS Engineering R32 Fontana,CA Twin 2835 Getrag 850 whp
#8 10.53@128 mph
Samurai Speed R35 Florida Stock Stock ~600 hp
#9 10.63@131 mph
Wen R33 Fontana, CA T51R SPL OS Gearset 850 whp

As you can see from the list, the T51R SPL is a fairly popular turbo. Two smoking fast R35 GT-R’s . There should be one in the 9’s soon.


Samurai Speeds Transmission Breaks On Video

Samurai Speeds R35 GT-R is the quickest GT-R in the World setting a 10.55@128 mph and 10.53@128 mph pass with over 100 LC launches. In this video, the transmission lets go. They seem to have found the limit.

* Believe it or not, I'm not all that upset about it. We knew we were going to have to upgrade it eventually, so now it will just happen sooner rather than later.

Now they have the chance to upgrade the transmission

Source: Nagtroc

Sunday, December 21, 2008

Federally Legal Nissan Skyline GT-R R32 For Sale

This is a very clean R32 with low miles, and has been well cared for. This is a Motorex legal GT-R, with U.S. substitute VIN., bond release ect. It has been cleared to list on here through eBay. The VIN# is : BNR32-218918, so you can have it verified by the DOT. They can be reached at 202-366-5291



Thursday, December 18, 2008

Calendar

2009 Calendar from a smog shop. Import cars. With Craig Liebermans old R34 GT-R on the cover.

Wednesday, December 17, 2008

Garage Saurus R32 Tsukuba Lap Battle

From a few years ago. Its a good video. It is really humping around the track. Who says massive power with no balance isn't fast ?

56.641. Thats fast. Its a drag car, turned time attack car.

720 hp. I am pretty sure its an OS Giken RB30. T88-33D

OS Giken RB30 on the Engine Dyno Video

Found this on You Tube.

Turbo ,power, and a couple more videos after the jump.

GReddy T88H-38GK, 815 on 98oct and 948 race fuel, both with a cracked and leaking intake manifold.

Monday, December 15, 2008

R.I.P.S. RB30 Promotional Video

Support some of the countrymen.

Some of the best moments were getting a 9.7 in Ludders full weight R34 GTR street car on its very first pass, getting the world record for full street 240z with an 8.71 @ 162mph, building the worlds first RB33 and topping 1200hp/9000rpm with a fully water cooled RB street engine using a stock RB30 block, crank and cradle at just 1.8 bar

And here is the rest of it. Source : GTR.co.UK

1224 whp R34 GT-R in Australia


In Australia yesterday Godzilla Motorsports tuned R34 GT-R "RH9" set a horsepower record under competition conditions for RB26's in Australia

In the "Power Championship" at Autosalon final battle in Sydney today the car made a staggering 911 AWKW on its first run then backed up that figure and made another 20AWKW more...YES 931 AWKW!!!

The car was run with the factory ATTESSA to control torque split and i viewed the data with Todd from Mainline after the runs and it had a 65% rear 35% front split...no games here.

Stock block, stock crank. 2.6 liter. GT47-88 turbo. Big boost, but they say they have 5 more PSI in the bag. The intercooler end tank split on the last run.

Video after the jump:

Source: Skylines Australia

Sunday, December 14, 2008

Drift Tuners is Giving Up the Business

I stumbled across this on the internet.

Address: 266 Charlotte Street, Peterborough, ON, K9J View map
Date Listed: 12-Dec-08

$30,000 OBO for http://drifttuners.com - High Traffic!

This company has been a lot of fun, made great contacts over the years, hate to sell it but I'm way to busy with a new company. It's a great home based business that more then paid my bills. Great way to make a heathy living at home.

Includes phone number, Customers, website, server, software, broker, export agent, 1 week onsite training plus much more.

Makes $500,000 year. If interested call me at 866-847-1407 ex: 228 or email me at jeremy@drifttuners.com . It's a great business, I'm moving on in a diferent area of importing in Dubai. Also includes full rights as the main sponsor to our Pro Drift team.

As a bonus I will toss in http://racinguploads.com .

Or I will trade for a 2003 + 350z, Hummer H2, BMW 330Ci, Cadillac CTS or Mercedes

Drift Tuners. I guess the business was just too good.

Saturday, December 13, 2008

OS Giken RB30 , OS Giken RB31 , Nissan RB30 , HKS High Deck 2.8

 rb30complete

A quick and dirty guide on a couple of the “no replacement for displacement” adages. OS Giken has a couple of kits they sell. Nissan has an RB30 block. HKS has a special High Deck block.



OS Giken RB30 – A spacer plate, open deck block 86 mm bore and stroke work out to 2996 cc. The picture to the left is interesting. Twin T78’s on an RB30.







rb30kitOS Giken RB31 – This picture is actually of the RB30 kit, however it is the same kit with a longer stroke. More or less the same. Not exactly the same.











blockpistons-RB30 Nissan RB30  - The Nissan RB30. The “taxi” block. There is no replacement for displacement,and on the cheap, this is the way many people go. It requires a modified oil pan pickup, and an adaptor to bolt up to the RB26 all wheel drive oil pan.









  OS Giken
RB30KIT
OS Giken
RB315KIT (race only)
Nissan
RB30D
Nissan
RB26
  1,627,500 yen (tax included) -------
Bore × stroke 86 x 86 86.5 x 89 86x86 86x73.7
Displacement 2996 3138cc 2996 2568
Block 05U N1 RB30 05U
Spacer 24mm 26mm None None
Liner Open Deck Open Deck Closed Closed
Crankshaft 8 hole 8 hole
Pistons
Ring widths
22 mm pin
1.5, 1.5,2.8
22 mm pin
1.5, 1.5,2.8
21mm 21mm
1.5,1.5,2.8
Rods
Bearing width
138.35 c-c
23mm GTI-R
139.35 c-c
23mm GTI-R
  121.5 c-c
21.8 mm
Pulley OS Giken OS Giken Stock Stock
Timing Belt OS Giken OS Giken
Head Bolts OS Giken OS Giken 10mm 12mm
Head Gasket 1.2 mm metal 1.2 mm
metal
  1.2mm paper





HKS-Hi Deck 28

HKS High Deck 2.8 – The elusive HKS “high deck” block. It appears to be only a sleeved and deck plated block. They probably run a long rod in it to make some more torque. This was supposedly the block in the 7 second HKS Drag R33. There are a couple guys in the UK running it, and a few of the more serious drag GT-R’s in Japan.



Friday, December 12, 2008

Importing a Nissan Skyline

The Nissan Skyline was not originally manufactured to comply with all applicable FMVSS. Such a vehicle that is less than 25 years old can only be lawfully imported into the U.S. if (1) it is determined eligible for importation by NHTSA and (2) it is imported by an RI or by a person who has a contract with an RI to bring the vehicle into compliance with all applicable FMVSS within 120 days of entry.

Import eligibility decisions are made on a make, model, and model year basis. NHTSA has determined that the R33 Model Nissan GTS and GTR ("Skyline") passenger cars manufactured between January 1, 1996 and June 30, 1998 are eligible for importation and has assigned vehicle eligibility number VCP-32 to those vehicles. (The import eligibility number is to be entered on the HS-7 Declaration form that is to be given to Customs at the time of entry, and alerts Customs that the vehicle may be lawfully imported by an RI or by a person who has a contract with an RI, even though the vehicle is not certified by its manufacturer as complying with all applicable FMVSS.)

To learn the modifications the petitioner stated were needed to conform Nissan Skyline vehicles to the FMVSS, you should go to the DOT Docket website at http://dms.dot.gov and enter docket number 5507 in the appropriate block on the simple search screen. You should note that the petition sought import eligibility for 1990-1999 Nissan GTS and GTR "Skyline" passenger cars. After granting the petition, the agency learned that the modifications identified in the petition were not sufficient to conform certain model and model year vehicles that were covered by the petition. The agency therefore partially rescinded its grant of eligibility, leaving only R33 model Nissan GTS and GTR passenger cars manufactured between January 1, 1996 and June 30, 1998 eligible for importation.

A list of RIs can be found on our website at http://www.nhtsa.dot.gov/cars/rules/import. You should consult the importers on that list to see whether any are willing to conform the vehicle that you seek to import to all applicable safety and bumper standards, and if so, what they would charge for that work.

If you decide to import the vehicle, one potential complicating factor is that the RI who petitioned NHTSA to determine the Nissan Skyline eligible for importation requested, and was granted, confidentiality with respect to the modifications needed to conform to the vehicle to certain of the standards. As a consequence, that importer (J.K. Technologies, LLC of Baltimore, Maryland) has claimed a proprietary interest in the modifications covered by the confidentiality grant. This does not preclude other RIs from attempting to modify the vehicle. However, should those importers not gain access to the modifications covered by the grant confidentiality, they will have to demonstrate to the agency, at the time they submit a conformity certification package for a Skyline, that they have made equivalent modifications that permit the vehicle to comply with the standards covered by the confidentiality grant.

Please note that we determined the vehicle eligible for importation based on its capability of being modified to comply with all applicable standards. We did not approve J.K. Technologies, LLC as the "exclusive" importer of the vehicle. As previously indicated, any other RI is free to import the vehicle, but will have to demonstrate in the conformity package submitted to the agency to obtain release of the conformance bond furnished at the time of importation that the vehicle has been brought into conformity with all applicable standards, including those covered by the grant of confidentiality to J.K. Technologies, LLC.

You should note that if you were to import the vehicle, the necessary modifications would have to be made by an RI, and that importer would have to certify to us that the vehicle conforms to all applicable FMVSS in effect on its date of manufacture before the vehicle could be released to be licensed or registered for on-road use. One of the reasons that an RI is required to import and modify a vehicle that was not originally manufactured to comply with all applicable FMVSS is because the RI stands in the stead of the vehicle’s original manufacturer to provide the vehicle’s owner with notification and remedy in the event that the vehicle is determined to contain a safety-related defect or a noncompliance with an applicable safety standard. Because the original manufacturer would not be responsible for the vehicle being in the U.S., it would have no legal obligation to perform this import safety responsibility.

Questions regarding modifications to conform the vehicle to applicable emissions standards should be directed to the EPA. Source :NHTSA DOT

R33 GT-R vs Mitsubishi GTO vs Porsche 993 Turbo

Drug Race Video

Porsche 993 12.799

R33 GT-R 13.431

GTO 13.660

Thursday, December 11, 2008

D1GP USA Announces Official 2009 Schedule, Locations, Design and Upcoming Media Tour


Make no bones about it ... D1 Grand Prix is back in the USA!!! As the founder and premier drift racing sanctioning body globally, D1 Grand Prix (www.d1gp.com) is releasing the critical news the industry has been waiting for including: the 2009 U.S. racing schedule, locations, track design and upcoming media tour.

D1GP USA made its first announcement regarding their return to U.S. soil just prior to the 2008 SEMA Show in Las Vegas. Since then, D1GP USA has been developing a new racing format and is excited to announce its 2009 racing schedule with four unique locations across the United States and an aggressive and high impact new track design.

2009 D1 Grand Prix USA Schedule

-- Anaheim Stadium, Anaheim, California - May 2nd
-- Dolphins Stadium, Miami, Florida - May 30th
-- Wachovia Spectrum, Philadelphia, Pennsylvania - July 18th
-- Soldier Field, Chicago, Illinois - August 1st

"With our new management team in place, we decided to focus all of our initial efforts on two main objectives. The first was to make the events more appealing and accessible to local, out of town and new entry level fans. The second was to deliver a new high impact state-of-the-art racing experience that will define the future of drift racing in the United States," said Rich Goodwin, President of D1USA. "In order to achieve these objectives we had to think outside the box. By moving the events to these centrally located venues allows for us to achieve our objective of making the events more appealing and accessible to fans, along with mainstream local media. In addition, the wide open spaces these venues offer also allow us to build in our aggressive new track design and to add in other exciting entertainment on and off the track."

D1 Dojo

Dubbed the D1 Dojo, the new aggressive track design is more than a race track, it's a drifting entertainment experience that puts the show goer trackside for an up close and personal experience like never before. The track layout will be dynamic incorporating a bull ring-style with multiple entry and exit points and numerous turns. The racing will be heart pounding as in the distance fans will hear the faint roar of the engines as they ramp up from behind the Dojo before attacking the entry at top speed. The design allows for constant action -- as one car exits out of the Dojo from one side of the track, the next car enters simultaneously for continual racing action. During breaks the track will take on exhibitions and other racing elements to entertain the crowd and when night falls on the Elite 8, the Dojo will be transformed into a dazzling display of lighting effects that only Driven Events, made up of the original founders of Hot Import Nights could pull off.

Surrounding the Dojo will be the D1 Fan Fest which will include sponsor and exhibitor midway, stage performances, model pavilions, car show and more. D1GP USA will release more entertainment and racing information in January to coincide with the launch of the new www.d1gp.com website and media tour.

Driven Events, Inc. (D1GP USA Management)

D1GP USA is operated by Southern California based, Driven Events. The company licensed the rights to D1 Grand Prix in the United States in late 2008 and they share a long term vision with D1GP Japan. Driven Events is made up of auto industry insiders. Led by Rich Goodwin and Michael Munar, the D1GP is under complete new management. Both Goodwin and Munar were the founders of the original Hot Import Nights (HIN) started in the late 90's. They sold HIN in 2004 and Goodwin and Munar went on to separate projects, however have now reunited specifically for this project. They are partnered with Ed and Emil Arguelles, the founders of Extreme Autofest. The group has also employed many of the original HIN & Autofest team who are now working to build one of the best new racing events in the U.S.

January 2009 Media Tour

As part of D1GP USA's call to action, the new team will be conducting a media tour in January that opens up a new line of communication with the media. The goal of the tour is to simply introduce the entire D1GP USA management team to the endemic tuner publications, along with working to drive home the message that D1GP USA is here to stay. We will also be laying out more information on the strategic plans for D1GP, sponsors, drivers, venues and future plans for the business.



SOURCE D1GP USA

Gary's R32 GT-R

A couple of videos of Gary's car autocrossing. The car is a twin TDO6 , 2.6 liter car. Lots of good parts in the engine. Gary's car is an original Motorex car. One of the last ones I did when I was at Motorex. Some of Gary's Pictures. The Mods:


Bottom End:
Stock Block (Bored/honed to 87.0mm)
R33 Stock Crank (Balanced/polished and checked for straightness)
Carillo Rods H-Beam, WMC Bolts
CP Pistons, 87.0mm, 9.0:1 Custom CR
ACL H-Series Rod Bearing Set, 19mm Wide, Nissan SR20DET, +.001
ACL H-Series Main Bearing Set
ARP Main Stud Kit
ATI Super Damper (Street)

Head:
Supertech Iconel Exhaust Valve, +1mm
Supertech Intake Valve, +1mm
Supertech Dual Valve Spring, 92in/82ex lbs on the seat
Supertech Titanium Retainer
Supertech Intake Valve Stem Seal, SR20DET
Supertech Exhaust Valve Stem Seal, SR20DET
ARP Head Stud Kit
Tomei Procam 270 cams 10.25mm lift (intake and exhaust)
Power Enterprise Grommet "Heavy Metal Head Gasket" T-1.1mm
Power Enterprise Super KEVLAR II timing belt
A’PEXi adjustable cam pulleys
Tomei metal intake and exhaust gaskets


More mods :

Engine Lubrication:
Tomei Oversize Oil Pump
GReddy deep sump kit
HKS Twin Oil Coolers with Filter Relocator and Thermostat Bypass
Calico Coated Pistons, Main Bearings, and Rod Bearings

Fuel:
RC Engineering 1000cc fuel injectors (matched set)
Two in-tank MKIV Supra Turbo fuel pumps with custom aluminum sump
GReddy fuel rail, two -6 AN inlets, one -6 AN return
Aeromotive adjustable FPR
Retrofit HICAS hard lines with dual -6 AN fuel fitting for duel fuel feed
Aeromotive -10 AN fuel filter

Engine Cooling:
Koyo 3-core all aluminum radiator (Modified with Moroso billet aluminum filler neck and 19-21lbs cap)
Nismo N1 Water Pump
Twin 12” electric fans with thermostat control

Intake:
GReddy Intake Manifold
HKS 80mm hard piping kit – (modified to 100mm to accommodate GReddy intake manifold)
GReddy 3-core Intercooler
A’PEXi Racing Blow-off Valve
RaceMax Throttle Body Shaft Seals

Turbo and Exhaust:
Twin GReddy TD06L2-20G 8cm
A’PEXi Racing Wastegate
Custom 2 to1 downpipe to 95mm piping
Saurus stainless steel exhaust manifold
Twin Blitz power filter kit
JIC Magic Stainless Steel one-off 95mm Racing Exhaust
HPC HiPerCoat® Extreme coatings on turbine exhaust housings, exhaust manifold, wastegate housing, and downpipe

Drivetrain:
OS Giken "Crossmission" gear set
OS Giken triple plate clutch / flywheel
Nismo motor and transmission mounts
Essential HICAS lock-out kit

Suspension and Chassis:
JIC Magic FLT-TA2 racing coilover system - 12kg/9kg Front//Rear
Cusco Front Strut Brace
Cusco Adjustable Front Tension Rods

Electronics:
Power FC D-Jetro tuned by Mazworx
Greddy Profec B Boost Controller (Blue)
Greddy Turbo Timer (Blue)

Shoes:
18x9.5 Rare Hasemi Racing 18" Alloys (2 piece)
Tires 265/35-18 all around

Exterior:
Do-Luck Full T-2 Body Kit
Do-Luck T-1 Rear Wing
Nissan Racing Purple Paint

Interior:
Cross racing seats
Autometer Pro-Comp Tach
Greddy Boost and Exhaust Temp Gauge
Alpine Stereo with Infiniti speakers

Cool Pix Nov 2008

We Called JK Technologies to Ask Them About Drift Tuners

We just called JK Tech to talk to them. Ask about DOT , EPA, OBD II . We asked them if they knew Drift Tuners " no,a lot of people throw our name around" was the response.

We asked them if it was 26k to legalize a Skyline and they said" no the process is not 26k". JK quoted us $36k to legalize a car.

When we asked them if they had a Certificate of Conformance for the OBD II system they said "it has nothing to do with DOT".

It may not have anything to do with the DOT, but it has everything to do with EPA compliance and bringing a car into full federal compliance.

You can contact them yourselves to check up on the story. Were we talking to the wrong person ? Lois ? She is listed as the owner of the company.If there is a deal between Drift Tuners and them, I would imagine that she would know.

JK Technologies
410-366-6332
convert2us@aol.com

People should call and email them. Ask them about Drift Tuners.

I wonder what is going on ?

Nismo/Motul Competition Gear Oil


Nimso in conjunction with Motul has released a competition gear oil that has been developed and tested in the 24 hours of Tokachi

Source : GT-R Blog

It is designed for 3,000 km , about 1800 miles of sports use. It is priced at about $80 per liter. Nismo/Motul also has several weights of engine oil that are also available soon.

Wednesday, December 10, 2008

Drift Tuners : Federal Law ? State Law ? Whats the Difference ?


From some emails - and posted at Freshalloy

Sean in Japan the emission standards are much higher so if importing a car with the OBDII system built in Japan, why is it an issue in the US. Only Cali can come close to the standards of Japan for emissions. So your saying that the U.S. needs to make a system better then Japan?, the country that has the highest emission standards standards?


Jeremy Boddy
General Director
DRIFT Tuners Inc.


Jeremy spitting knowledge there.



There is no OBD II on Nissan Skylines.

Japanese standards are not higher than US standards.

You are clueless. Do you have any idea what an FTP test is ? Any clue ?

http://www.epa.gov/oms/imports/impflow.htm


Prior to importing a vehicle into the U.S., you will need to become familiar with the applicable EPA requirements. The Automotive Imports Facts Manual will guide you through the necessary steps for importing a vehicle. This document provides a comprehensive look at the vehicle import process. You may also wish to consult the Quick Overview of Vehicle Imports Requirements for an abbreviated discussion of many common import situations.

So how are you importing vehicles, and registering them without getting EPA approval ?

Next:

Where in the U.S law does it say that any car imported has to be at Federal Standards? It’s State to State.


Jeremy Boddy
General Director
DRIFT Tuners Inc.


Where ? How about here ?

http://www.nhtsa.dot.gov/cars/rules/...I_list5108.pdf

http://www.nhtsa.dot.gov/cars/rules/...1to595.htm#591

This part establishes procedures governing the importation of motor vehicles and motor vehicle equipment subject to the Federal motor vehicle safety, bumper, and theft prevention standards to ensure that motor vehicles and motor vehicle equipment permanently imported into the United States conform to theft prevention standards, all applicable Federal motor vehicle safety standards, and bumper standards.

Thats 49CFR Part 591 which is federal law on vehicle importation. Not state to state.

Drift Tuners.

Drift Tuners Is Going to Sue Me.

Also It came to my attention about untrue facts that you are saying, me scamming people, who Sean??. Well if things don’t stop Your going to get sued and I will publish that online with the documents along with testimony from U.S. and Canadian customers that are happy with the service. In fact you are digging yourself a hole and all threads that you posted claiming that I am a scam are going to be submitted to the courts. I would like to see what you can bring to the courts to prove I actually scammed someone. Things are going to get bad for you, you don’t want to mess around with the truth because in the end that’s what the courts and people will see. Sean I feel sorry for you man Slander is an evil that only you can explain. You will slowly find that people will lose respect for you and friendship will become scares. In the end no one will care about what you have to say because there initial contact was for a car not your drama. You will lose a lot of friends and at the end you will be banned from all the forums. I know them all buddy, there is a long list of relationships between the import community and DRIFT Tuners.


First off - slander is spoken words . Libel is when you write something. As you all can imagine. I have had some words with the kid, that I can't post on a forum. I am going to continue to egg him on.


Hey Sean your getting served which means because I’m filing locally you will have to fly here for court to plea your case. I will post all the documents about the law suite and we are for real and because we don’t back down people see that we are for real. No more games, your account will be shut down by blogspot.com also as we have a relationship with them. There have been contacted tonight. Funny thing is that our PR guys and marketing guys are close friends with you, not any more, you’re going to look stupid as this goes on my friend. And again your still to proud to call me, love that! Small little guy that no boddy cares about because you have nothing better to do then talk ******** without proof, so who am I scamming?? J


They are going to shut me down. Sue me locally. Nice. I am shaking in my boots right now.

Ha ha ha

Drift Tuners : Their Own Forums AKA Using Their Own Words To Hang Themselves


I was glancing around at the Drifttuners forums, seeing what they had to say, and I am not going to post a direct link, they don't need any free traffic.



Posted by Jermy Boddy - Nov 19,2008

Also if you live in any state besides Cali you don't need to Federalize the car. You can get it legal in your state for much less. Around $5,000


And again.

Posted by Jeremy Boddy - Nov 23, 2008
Because you’re not in Cali you don't have to worry about the Federalization process. When you Federalize it means that you can be a resident of any state with any JDM however if you decide never to move to Cali then there is no extra cost on top of our listed price on the website. But if you do decide to move to Cali then you will have to pay the $26,000 because Cali’s emissions and safety standards are so tight. Sucks but that’s the Government for ya!


Federalization. Does he understand what Federalization means ? He is giving a customer advice about Federalization. Federal. As in the whole country. As in bringing the car into compliance with DOT and EPA rules. The only way you need to do Federalization is if you are in California ? California has its own rules.

This guy is just talking about getting "state legal" cars. Nothing else. He can't get a federal car done. He keeps claiming to be able to do it, never seen anything.

So these guys are an RI ? Posted by Jeremy Boddy January 31 ,2008
There are alot of importers however we are the only RI in the world that can legally modify the R33 to comply with the US laws and that's because we have the multi million dollar crash testing facility and we are the only company in the world that know what and how to modify the R33 to US standards. Also not many companies in North America can legally import track cars, you have to hold a special licence for customs clearance to do so. DRIFT Tuners has been around for a few years and generates sales near the million per year.
They are an RI ? They have a multi- million dollar crash test facility ? Big words from these guys with no proof. Its nearly a year later and what do they have ?

These guys are a scam.

One more
Posted by Jeremy Boddy - Nov 19,2008 -

I can get you in a fully Federalized DOT, EPA, NHTSA R34 for a budget of $25,000.
So where in the list of non conforming vehicles is an R34 ? The list says 1996-1998 R33's only. So you are offering something to someone that you can not legally sell them. He is saying because the R34 was also available in 1998, that it somehow is ok as the 1998 R33 is legal. Silly rabbit, tricks are for kids.

Drift Tuners Moving Forum to Forum Trying to Scam People


Drift Tuners - Jeremy Boddy. I had run into him on the Freshalloy forums when I was having some issues with Supaca Imports. I even went to Supacas "office" and exposed they don't exist. Now DT has shown their head around a couple forums , Nico, My350Z, Zilvia, claiming to be able to import JDM cars. Claiming to be able to import race cars. A slick website, and most people that don't know any better bite. Don't be scammed by these guys. Read and learn from these forum posts. Question anyone that can claim to get you an "imported" car. You as the buyer, are the one that is going to have problems later.

Forum posts to do some more reading.

Drift Tuners new batch of idiots

Drift Tuners : Yes they are still around

http://forums.nicoclub.com/zerothread/384685-drift-tuners-inc-gtrs-legally-in-the-usa


http://forums.nicoclub.com/zerothread/389393-email-from-drift-tuners-proof-they-are-scamming


http://forums.nicoclub.com/zerothread/388438-drift-tuners-jeremy-emails

Zilvia forum - this one got locked. It just makes me mad to see all these people jump in and say how they want a car. These guys will give this guy money, and get nothing but a headache in return.

My350Z forum

- Again. Same responses.

Check out this email from Jeremy.

This email got sent out to a lot of people...

"We now offer DOT & EPA imports for U.S. street use which also includes a U.S. title. For more information please call us at 1-866-847-1407. This includes the Toyota Supra, Nissan Skyline R33 and R34 from 1996 through 1998 and the Silvia S13, S14 and S15. We currently are updating the website to include the DOT, EPA and title within the price of our U.S. sales. Call or email us for more info. Our process no longer will include J.K. Tech, LLC. Therefore reducing the overall cost saving you money. Our process is $5,000 vs the $26,000 that J.K. Tech charges.


Jeremy Boddy
General Director"


Nice. $5000 with a title. Anyone that has actually ever even tried to get a title for a imported car, knows you are going to spend a lot of money. Just EPA work and compliance, and you are nearly at $5k.

I wonder what happened between them and JK. Have to follow up on this. These guys are just full of it.

I had an email the other day from someone that said they sent Drift Tuners $2000 for a deposit on a car. They had a lot of problems getting a hold of them after they sent the money. The car they wanted wasn't available, so the buyer found another, as they could not get a hold of Jeremy. I haven't heard if it had been settled, but I am sure that is how this kid is working. Just scamming one person after another.

Know the laws and regulations on importing.


Race car exemptions

EPA Requirements


How to import a Nissan Skyline GT-R How to import cars from Japan

Tuesday, December 09, 2008

Fast and Furious 4 Releasing April 2009

Fast and Furious four's release date has been moved forward a few months according to Edmunds Inside Line.

That's right; instead of having to wait all the way until June in order to see the reunion of Vin Diesel, Paul Walker, Michelle Rodriguez and Jordana Brewster in a bunch of high-performance cars, you'll be able to get your fix in April. Not even late April, but April 3 when the film — simply entitled Fast & Furious — shows up in every Cineplex ever built.
Fast & Furious

Word is that there will be some last-minute reshoots for the film next week for the purpose of shoehorning Tyrese Gibson's character Roman Pearce from the second film (2 Fast 2 Furious) into the new one.

Look carefully, you might see my hands and feet. Carefully.

Sunday, December 07, 2008

Federally Legal Nissan Skyline GTS ( R33 ) For Sale

Federally Legal Nissan Skyline GTS for sale. R33

One of the few federally legal Skylines.

Updated Drag Times - SP Engineering R35 and R33

Alex from SP Engineering sent me a text message yesterday saying they were at Famoso Dragstrip and had run their cars again. I think Alex has the 1/4 mile bug. Thats a good thing, I think a few people do. We might see a grassroots resurgence of import drag racing.

Their R35 GT-R ran a best pass of 11.1 @ 128 mph on low boost with no LC. Their R33 ran a best pass of

10.3@138 mph. They said it was cold, about 45F at the track. Still new times, good times. Now whens the next event ?

Saturday, December 06, 2008

Friday, December 05, 2008

Daily Show : Automaker Bailout Explaination

From the Daily Show.

Yes give them the money. This is not a single company we are talking about. Its the worlds financial system. This affects even more than just the US, the Big 3 failing will bring the whole worlds economies down to record low levels.

$700 billion bailout of the finance industry. $35 billion on the Big 3.

How to import vehicles from Japan Guide

There is a guide available from the internet that gives you information on how to buy and import cars from Japan. There are guides for importing from Japan to Australia, Japan to the UK , Japan to Canada, and Japan to the US. They say"
A complete step-by-step
guide that will get you importing cars from Japan all by yourself.Why import a car rather then buy cars locally?

The choice of cars is much much larger! - You can buy your car from private sellers in japan, from car auctions, from car yards and many other places such as Yahoo Auctions Japan.

Save a ton of money by importing your next car from Japan - If you were to buy your Japanese car locally you would pay much more then importing it yourself.

Be the first owner in your country - Own you car in your country before anybody else gets their grubby mitts on it. (This really is a great feeling)

Buy and sell for profit - Making money on Japanese import cars is easy. Buy cars for cheap in Japan, import them and sell them for a profit in your country! It is easy to make huge profits if you import the car yourself. I personally made over $120,000 last year by doing exactly this. Let me show you how to do it!

I have written 4 separate guides so you can import cars and sell them for massive profits. Learn how to import a car from Japan to USA, Canada, Australia and the UK.

All 4 guides will help you successfully import a car from Japan to your country.

Whether you want to import a quality Japanese performance vehicle like a Skyline or Supra, or a family car like a Delta wagon, my guide will show you how. You will find out exactly how to import any car from Japan to your country for as cheap as possible. Each of my guides have their own countries customs and registration requirements, so you can be sure to import cars with no worries at all.
" I haven't read these guides yet, but I would be interested to see what they say about importing cars to the US. Obviously the US is a little harder than most places to import a car . I posted up some information on "How to Import a Skyline GT-R" . Not too detailed. One day I might post up more of what I know.

Thursday, December 04, 2008

Nissan Skyline GT-R OEM Part Numbers

From Freshalloy Forum. Complied by John from LM24.net

Part numbers for RB26DETT only, unless otherwise noted.

Ignitor pack- R32/33- 22020-05U00

Spark Plugs- PFR6A-11

Clutch Pull to push conversion-
Late Model R32, R33 and R34’s
Front cover assembly :32110-05U11 (japan part only)
Gasket :32112-05U12
Clutch fork :30531-01S00 (same part for a 1991-1993 240SX)
Spring :30514-14600
Spring :30534-E9000
T/O bearing :30502-14601
Bearing sleeve:30501-S0160 / 30501-N1601 (14mm for twin / trip disc)
Bearing sleeve: 30501-K0404 (24mm for single disc)
Dust cover :30542-31610
Slave cylinder :30620-21U01
Flywheel bolt: 12315-04U00

Factory Clutch
R32 GTR
Disc- C0100-05U15
Cover-30210 - 05U01
Bearing- 30502-21000

R33 GTS
Disc- 30100-21U01
Cover- 30210-21U00
Throw out bearing- 30502-12U00 (300ZX part) or 30502-45P00 (300ZX part)
Bearing Sleeve- 30501-S0200 (18mm)

R33 GTR
Disc- 30100-0V708
Cover- 30210-24U00
Bearing- 30502-12U00

R34 GTR
Disc- 30100-0V708
Cover-30210 - AA300
Bearing- 30502-12U00

R32/33 Brembo Brake pads-
F 41060-12U87
R 44060-12U87

Belts-
RB26 R32 4 Ribs
AC- 925 mm
Power Steering- 950 mm
Fan- 880 mm

RB26 R33/R34- 4 Ribs
AC- 910 mm
Power Steering- 969 mm
Fan- 875 mm

R32- RB25
AC- 4 ribs 925mm
PS- 3 ribs 845mm
Fan- 4 ribs 860mm

R32- RB20
AC- 4 ribs 925mm
PS- 3 ribs 855mm
Fan- 4 ribs 860mm

R33- RB25
AC- 4 ribs 910mm
PS- 3 ribs 845mm
Fan- 4 ribs 850mm

R33-RB20
AC- 3 ribs 910mm
PS- 3 ribs 855 mm
Fan- 4 ribs 850mm

R34- RB25/RB20 - 4 Ribs
AC- 910mm
PS- 865mm
Fan- 890mm

Water Pump-21010-58S25
N1 Water Pump- 21010-21U26
N1 oil pump- 15010-24U01
Thermostat-21200-42L06 for the RB25DET and RB26DETT.
Part # is 21200-42L00 or 21200-42L01 for the RB20DET.
R32 ABS Unit- 47600-05U00
R33 ABS Unit- 47600-15U00
R32 Power steering pump- 49110-05U00
Intake gasket- 16175-05U70 (3 needed)
Nismo AFM’s 22680-RR580
Standard AFM’s 22680-05U00
Lower rad hose- 21603-72L00
Upper rad hose- 21501-05U00
R32 ATTESA valve- 49836-01U00
R33 AC Compressor- 92600-24U15
R32 Clutch master Cylinder- 30605-05U00
R32/33 CAS 23731-02U10/1
R32 Starter- 23300-20P00
N1 Block- 11000-24U00
Injector O-Rings- 16635-78A00
Valve cover gasket- 13270-58S11 and 13270-58S01
Valve cover half moon seal- 11051-58S00
R32 AAC- 23781-05U11
R32 GTR ECU- Hitachi- 23710-05U02/01
R32/R33 Twin Cam valve cover strip- 13290-05U00
R33 Front Hood Spoiler-65834-24U00
R32 Oil Pressure Sender- 25070-30P01
R33 AC Hoses
Flexible low pipe - 92480-98U00
Front cooler high line- 92440-24U20
Flexible low hose- 92490-24U10

R33 Heater core compatible with Z32 heater for you must reuse your plastic inlet and out lines- TBA
RB26 Dip Stick- 11140-05U02
R32/33 Starter- 23300-20P05
R32 Alternator (Mitsu unit) 23100-20P10 (90 amps) 23100-86L11 Mitsu (90 amps) and 23100-86L12 Mitsu
R33 Alternator 23100-70T13 Mitsu (80 amps) 23100-70T03 hitachi (80 amps) 2/97~up 23100-0V010 Mitsu (80 amps)
R34 Alternator 23100-0V016
R32 2WD model Alternators
23100-59S01, 23100-85L00 Hitachi
23100-85L10, 23100-85L11, 23100-85L11 Mitsu

Found this on GTR UK
BNR32
Part Number Item Description Common To Other Source Notes
13028-20P25- Belt - Timing no
16400-72L00- Strainer Assy - Fuel U13
21200-42L05- Thermostat Assy Y32
22401-58S15- Plug - Spark KN13 w/CA18DE
28890-01U00- Blade Assy - Windshield no
28890-51S10- Blade Assy - Windshield B13
28790-56E00- Blade Assy - Rear Window U12?
30100-04U00- Disc Assy - Clutch no
30210-73L00- Cover Assy - Clutch no
30502-21000- Bearing - Clutch Release Z31 turbo
46210-04U00- Hose Assy - Brake, Front no
46214-01A11- Hose Assy - Brake, Rear B13
37521-01U26- Bearing Kit - Center (Driveshaft) no from 89/11 to 90/08
38300-84M79- Final Drive Assy no without EAL sensor
39241-73L25- Repair Kit - Seal, Outer (outer CV boot, rear) Z32 non-turbo
39741-03P27- Repair Kit - Seal, Inner (inner CV boot, rear) Z32 non-turbo
30611-71L25- Piston Kit - Clutch Master Cylinder WD21 '90-'91
30621-26E25- Piston Kit - Clutch Operating Cylinder no
32114-Y4000- Seal - Oil, Front Cover (Transmission) D22 '00+ KA24DE
32112-04U00- Gasket - Front Cover (Transmission) S13?
32136-U0100- Seal - Oil, Rear Extension (Transmission) D22 '00+ KA24DE
32870-V5003- Socket Assy - Control Lever (shifter bushing) S13
32862-V5001- Boot - Control Lever (inner shift boot) S12
38342-P9000- Seal - Oil, Differential Side Z32 non-turbo
38440-N3100- Bearing - Differential Side WD21 '90-'93
38189-21G00- Seal - Oil, Drive Pinion WD21 '88-'90
38120-13210- Bearing, Drive Pinion, Front Z32 non-turbo
38120-10V00- Bearing, Drive Pinion, Rear Z32 non-turbo
39711-73L00- Joint Assy - Inner (rear CV joint) Y32
43210-AA000- Bearing - Rear Axle, Inner no
43206-01U00- Rotor - Disc Brake, Rear Z32 '90
40210-33P02- Bearing Assy - Front Wheel Z32
40206-04U00- Rotor - Disc Brake, Front no
54524-01U67- Link Complete - Front Suspension, Upper RH no 54524N
54524-01U67- Link Complete - Front Suspension, Upper LH no
54500-01U01- Link Complete - Transverse, RH no 54500
54501-01U01- Link Complete - Transverse, LH no
54590-01U25- Extension Complete - Knuckle Arm, RH no 54590
54591-01U25- Extension Complete - Knuckle Arm, LH no
56112-A0100- Bush P11 56112
54618-56S11- Rod Assy - Connecting, Stabilizer S14
56112-V0100- Bush P11 56112+A
54468-01U00- Rod Complete - Tension, Front Suspension no
54476-35F20- Bush - Mounting, Tension Rod G50
54613-01U11- Bush - Stabilizer no
54050-01U11- Bumper Assy - Bound no
43252-30P00- Seal - Grease, Rear Hub Z32 non-turbo
55157-33P00- Bush Z32 43052E
55152-35F00- Bush G50 43052D
56219-33P00- Bush Z32 43052F
55130-32P00- Link Complete - Upper, Rear Suspension Rear Z32 8903 - 9008 55130M
55120-71L00- Link Complete - Upper, Rear Suspension Z32 8903 - 9006 55120
56113-33P00- Washer - Rear Stabilizer S13 56113M
54612-35F00- Bush - Rear Stabilizer Z32 56243+A
54612-01P00- Bush - Rear Stabilizer Z32 56243
55501-35F00- Arm Assy - Rear Suspension, RH Z32 non-turbo to 9006 55501
55502-35F00- Arm Assy - Rear Suspension, LH Z32 non-turbo to 9006 55502
54613-71L10- Bush - Rear Stabilizer S13 56243+B
55490-01U00- Damper Assy - Dynamic, Rear Suspension no
55475-35F00- Stopper - Member Mounting Lower S13 55475M
56217-71L00- Bush - Rear Shock Absorber P11
55154-30P00- Ball Joint Assy - Rear Axle Z32 turbo
55114-39F10- Link - Lower, Rear Suspension S13 55114+A
55114-39F00- Link - Lower, Rear Suspension S13 55114
48203-39F25- Boot Kit - HICAS Actuator S13
36530-71L00- Cable Assy - Brake, Rear Right no
36531-71L00- Cable Assy - Brake, Rear Left no
46011-30P25- Piston Kit - Tandem Brake Master Cylinder no same as GT-R
46010-04U20- Cylinder Assy - Brake Master no Three different brake master cylinders listed - check first
48080-50M11- Joint Assy - Steering, Lower KN13
49110-04U00- Pump Assy - Power Steering no
49200-04U00- Gear Assy - Power Steering (steering rack) no
49271-04U00- Rack Assy - Power Steering no
48521-72E00- Socket Assy - Tie Rod, Inner P10
48520-71L25- Socket Kit - Tie Rod, Outer no
49365-10V26- Seal Kit - Oil, Rear Housing (of steering rack) B14
49277-42L00- Seal Set - Piston Z32 '90-'92
49297-10V25- Seal Kit - Housing, Power Steering Gear U12?
48203-10V25- Boot Kit - Power Steering Z32
22433-60U01- Coil Assy - Ignition G50 '91 does not include protector
22020-05U00- Transistor Ignition Unit no same as GT-R
23731-79S10- Camshaft Position Sensor no two listed, check first
25080-89903- Sensor - Temperature Z32 25080X
25070-55S60- Sensor - Oil Pressure Z32 '90
25085-89900- Sensor - Boost Z32
23100-59S01- Alternator Assy no
23300-20P00- Motor Assy - Starter no
23343-20P00- Switch Assy - Magnetic (starter solenoid) B14 '94 GA16DE MT
25567-71L01- Body - Combination Switch no
25570-71L00- Switch Assy - Mirror Control no
24345-51E60- Cover - Connector (for battery connector) P10
24080-01U00- Cable Assy - Battery Earth no
24077-01U00- Harness Assy - Engine no
24022-F6100- Wire Assy - Fusible Link F31 24022
24022-55S60- Wire Assy - Fusible Link no 24022+A
24010-01U13- Harness Assy - Main no
25560-02U00- Switch Assy - Combination no
25260-01U00- Switch Assy - Wiper no 25260P
25260-01U10- Switch Assy - Wiper no 25260PA
25290-01U00- Switch Assy - Hazard no
25160-01U00- Switch Assy - Lighting no
25350-01U00- Switch Assy - Rear Defogger no
25540-01U22- Switch Assy - Turn Signal no
25450-01U10- Switch - Sunroof no
25401-04U00- Switch Assy - Power Window, Main no
25431-01U00- Switch Assy - Power Window, Assist no
28515-01U00- Amplifier Assy - Auto Power Window no
28511-01U01- Amplifier Assy - Windshield Wiper no
28475-01U00- Sensor Assy - Steering no
26025-01U00- Housing Assy - Head Lamp, RH no three kinds listed, check first
26075-01U00- Housing Assy - Head Lamp, LH no
26719-C9946- Bulb (headlight) G50 '91-'93 26011AD
26124-01U00- Body Assy - Combination Lamp, RH (front) no
26129-01U00- Body Assy - Combination Lamp, LH (front) no
B6554-04U00- Body Assy - Combination Lamp, RH (rear) no
B6559-04U00- Body Assy - Combination Lamp, LH (rear) no
26552-04U04- Rim - Combination Lamp, RH (rear) no
26557-04U04- Rim - Combination Lamp, LH (rear) no
28930-01U00- Nozzle Assy - Washer, No. 1 (driver's side) no
28931-01U00- Nozzle Assy - Washer, No. 2 no
28970-01U00- Nozzle Assy - Rear Window Washer no
28920-71L10- Pump Assy - Washer no
27140-71L10- Core Assy - Front Heater U12
27220-91L00- Motor & Fan Assy - Blower P10
21410-04U00- Radiator Assy no
21501-04U00- Hose - Radiator, Upper no
21503-72L00- Hose - Radiator, Lower no
21430-01F01- Cap Assy - Radiator B13
48470-04U00- Cover Set - Steering Column no
G2716-89901- Dam Rubber - Sealant S13
72750-04U10- Moulding Set - Windshield no
72712-05U05- Glass - Windshield no
72725-04U10- Fastener - Moulding no
G2716-89902- Dam Rubber - Sealant (rear window) D21
79780-04U10- Fastener - Moulding no
79712-04U17- Glass - Rear Window no
79750-04U10- Moulding - Rear Window no
80730-F6100- Motor Assy - Regulator, RH S13
80731-F6100- Motor Assy - Regulator, LH S13
80720-04U00- Regulator Assy - Door Window, LH no
80721-04U00- Regulator Assy - Door Window, LH no
80300-04U00- Glass Assy - Door Window, RH no
80301-04U00- Glass Assy - Door Window, LH no
83306-04U10- Glass Assy - Side Window, RH no
83307-04U10- Glass Assy - Side Window, LH no
96365-35F00- Glass - Mirror, RH Z32
96366-35F00- Glass - Mirror, LH Z32
96321-01U00- Mirror Assy - Inside no
10101-73L25- Gasket Kit - Engine Repair no
11042-72L25- Gasket Kit - Valve Regrind no
12279-42L00- Seal - Oil, Crankshaft Rear no
11121-42L00- Gasket - Oil Pan no
11044-58S01- Gasket - Cylinder Head no
13270-58S01- Gasket - Rocker Cover no
13270-58S11- Gasket - Rocker Cover no
15255-40F00- Cap Assy - Oil Filler B13 w/GA16DE
11220-02U02- Insulator - Engine Mount, Front no 89-'91
11320-41L03- Insulator - Engine Mount, Rear no
13231-58S12- Lifter - Valve no same as twin-cam CA engines
13070-73L00- Tensioner Assy - Belt (timing belt) no
14035-72L10- Gasket - Manifold (intake manifold to head) no
14032-72L00- Gasket - Intake Manifold (intermediate) no
14036-58S00- Gasket - Exhaust Manifold no
14415-V5300- Turbocharger Inlet Gasket Z31 turbo
14445-V2700- Turbocharger Outlet Gasket no
14465-26E00- Gasket - Inlet Tube (turbo compressor) Z32 turbo 8907-8912
15196-P7600- Turbocharger Oil Outlet Gasket Z31 turbo
14401-72L26- Turbocharger Gasket Kit no
15010-79S05- Pump Assy - Oil no
13510-19V00- Seal - Oil, Crankshaft Front no
22620-02U00- Throttle Position Switch no
16175-79S00- Gasket - Throttle Chamber no
22670-72L02- Regulator Assy - Pressure (fuel pressure) no
25060-01U00- Sender Unit - Fuel Gauge no
21010-42L25- Pump Assy - Water no
17042-73L02- Pump Assy - Fuel no
17251-79915- Cap Assy - Filler B12

BCNR33 Suspension part numbers
54618-05U00- front anti-roll bar link (goes on the end of the roll bar)
40160-AR510 front inner ball joint
40160-05U00 front outer ball joint
54613-01U11 front anti-roll bar bush
54614-05U00 front anti-roll bar bracket

R32/33/34
Wheel bearings
40210-05U00- Front
43280-AA3001- rear
43281-AA3001- rear

Hub seals
40232-33P55- front
43252-40P00- rear

R34 CAS- 23731-5L300

Updated 3rd, 4th and 5th gear trans part (R32-R33)
32606-30P10 Coupling sleave
32251-30P14 2nd gear
32604-30P60 ring 5th
32261-12014 3rd gear
32604-30P61 ring
32811-05U10 shift fork
32611-AA510 Coupling sleave
32609-70L15 Shifting insulator X3
32201-05U71 Main drive gear
32604-40P61 ring
32605-30P11 Hub
32603-30P00 Spring shifting X2
32212-AA504 Counter gear
32230-054U24 First gear
32137-AA500 Plate
32341-30P04 Over drive gear ( 5th gear )
32245-30P60 Reverse gear
32220-30P60 Reverse gear
32614-30P60 Ring
32615-30P60 Shifting insulator X3
32214-01G21 Corn counter
32616-30P20 Coupling sleave
32282-30P61 Reverse gear
32320-VB361 Shaft
32139-VB300 retainer
32312-30P24 gear
32320-VB361 shaft
32139-VB300 retainer

Blog Archive
