R32 GT-R Spare Wheel and Tire |
The lowly spare tire. An R32,R33, and R34 GT-R has a space saver spare located in the trunk. The OEM spare will clear OEM brakes, but if you have aftermarket brakes, you should take some time to see if the spare will work. Check out your spare tire air pressure. Also, its probably time you replaced that tire. Even though its probably never been used, its aged out by now.
R32 GT-R spare tire size 125/90/16 (24.9" diameter, 4.9"wide, 821 r/mile)
R32 GT-R Vspec tire size 145/70/17 (25.0" diameter, 5.7" wide 807 r/mile)
R34 GT-R spare tire size 145/70/17 (25.0" diameter, 5.7" wide 807 r/mile)
R32 GT-R
40300-05U10 - Wheel Assy - Spare Tire ( just the wheel not the tire)
74810-01A00 - Clamp Spare Tire - aka the bolt that holds it in place
74588-50A00 - Bracket Spare Tire Clamp. Aka the part of the car the bolt goes into to hold the spare in place (Alternate 74548-V5000 )
84960-04U00 - Cover Spare Wheel
R34 GT-R spare tire size 145/70/17 (25.0" diameter, 5.7" wide 807 r/mile)
R32 GT-R
40300-05U10 - Wheel Assy - Spare Tire ( just the wheel not the tire)
R32 Vspec
40300-05U70 - Wheel Assy - Spare Tire(just the wheel not the tire)
- This part number for the wheel is used by most rwd Nissan/Infiniti, but the tire is a different size.Most look like they are 145/80/17 which will be too tall to fit in an R32 rear spare wheelwell.
![]() |

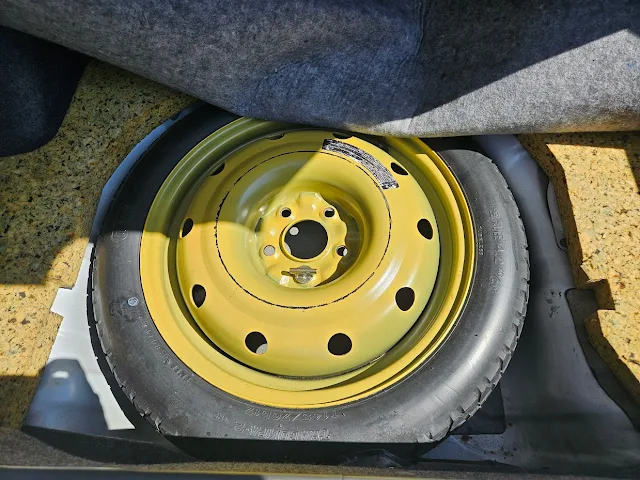

R32 GT-R Vspec spare tire 145/70/17 also notice the height of the foam in the trunk to bring the floor up slightly to match the tire. |
74810-01A00 - Clamp Spare Tire - aka the bolt that holds it in place
Size | Height |
---|---|
225/50/16 OEM R32 GT-R | 24.86 in (631.4 mm) |
125/90/16 OEM R32 GT-R spare | 24.86 in (631.4 mm) |
225/50/17 OEM Vspec | 25.86 in (656.8 mm) |
245/45/17 OEM Vspec II | 25.68 in (652.3 mm) |
245/45/17 OEM R33 GT-R | 25.68 in (652.3 mm) |
245/45/18 OEM R34 GT-R | 26.68 in (677.7 mm) |
145/70/17 OEM R34 spare | 24.99 in (634.8 mm) |
265/35/18 common GT-R size | 25.3 in (642.7 mm) |
275/35/18 less common GT-R size | 25.58 in (649.7 mm) |
74588-50A00 - Bracket Spare Tire Clamp. Aka the part of the car the bolt goes into to hold the spare in place (Alternate 74548-V5000 )
84960-04U00 - Cover Spare Wheel
R32 trunk clips
84650-01U00 superseded to:
both discontinued
