Nissan Stagea WGNC34 Rear Suspension

Nissan Stagea 260RS for sale at Toprank Importers

The Nissan Stagea WGNC34 Autech 260RS is sort of a hodgepodge of different Nissan parts.  One of the areas that its a little different is the rear suspension/coil overs. This is a place you have to be really careful with the wheel size and offset, as the coil overs are more vertical than on the R32 to R34 GT-R.

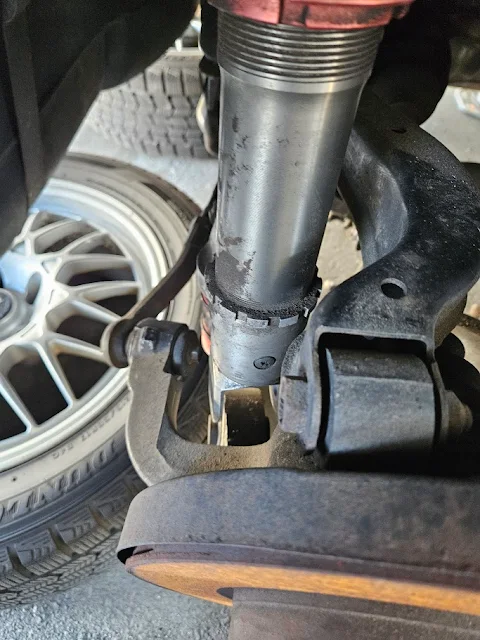

Notice where the height adjuster sits in relation to the wheel edge

R32 GT-R rear coil over angle

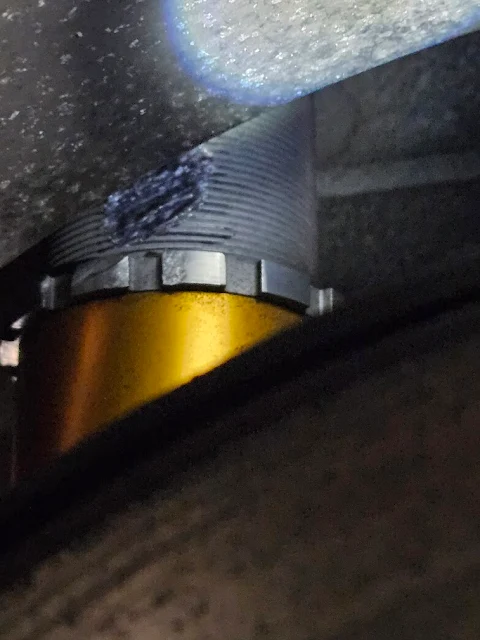

Opps

Careful

Victor got a little too aggressive with his rear offset, and needed to borrow an Ohlins

The rear coilovers/shocks use an R33/R34 lower and an R32 GT-R spaced upper. We found this out one day when loaning some Ohlins to Victor. We didn't have any specific Stagea suspension in stock, so we ended up "making" a set that would bolt on and let the car roll around.

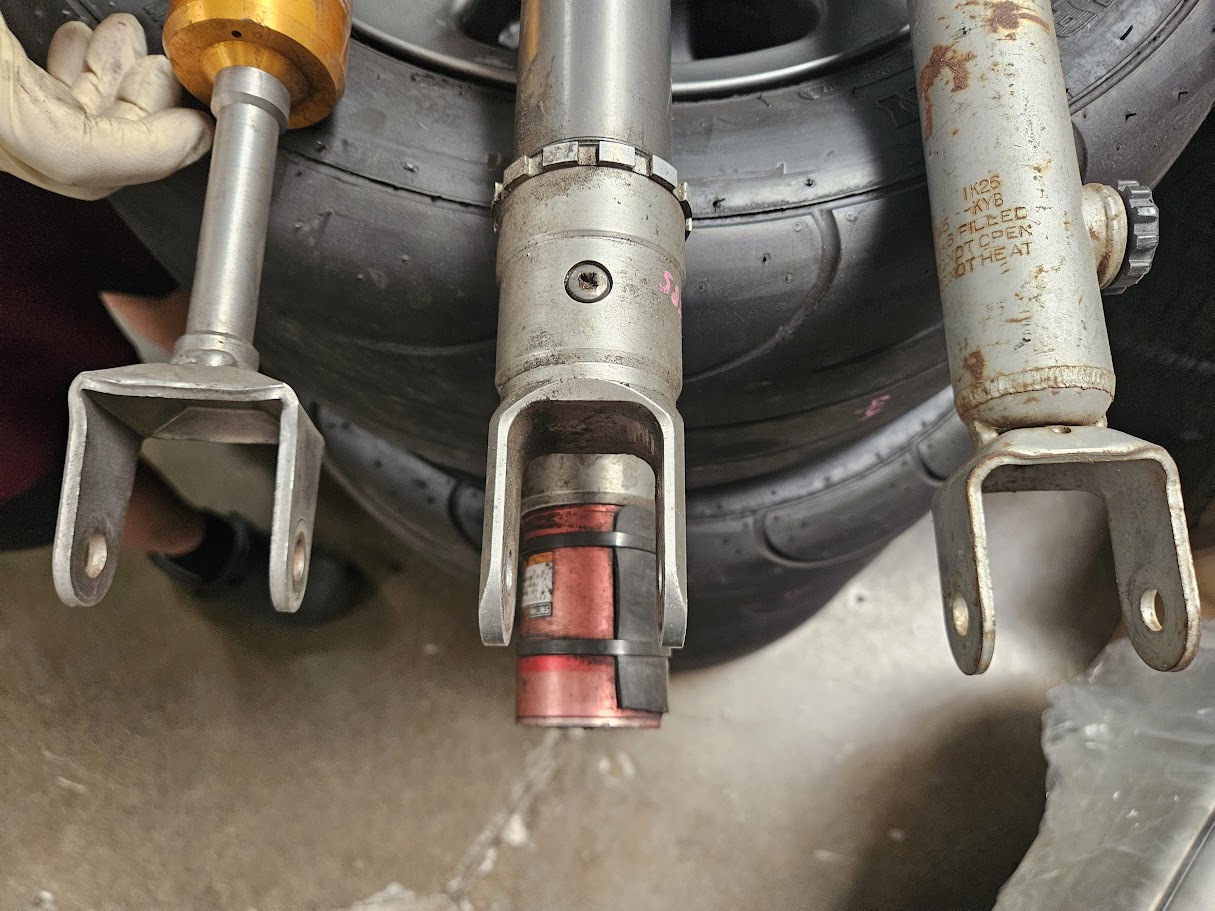

On the left is R33/R34 GT-R lower. Center is R32 GT-R lower. Right is also R33/R34 GT-R lower.

R32 GT-R coil over won't fit on the bottom

Stagea/R32 top on the left, R33/R34 top on the right. Notice bolt spacing
