Brake Deflector Guide : Brake Duct : R32 GT-R : R34 GT-R : Brake Cooling

R34 GT-R brake deflectors
R34 GT-R brake deflectors these are made of rubber and flexible

The R32 GT-R N1, R32 GT-R Vspec, R33 GT-R, and R34 GT-R all had brake deflectors to direct airflow to the brake rotors.  They also sported Brembo brake calipers.   In an ideal world, the Skyline GT-R would have had a trailing caliper, so that air could easier get to the center of the rotor, to be pumped out through the vanes, cooling the rotor itself.    On the street, this part, probably isn't important for you .  The the track, very important.

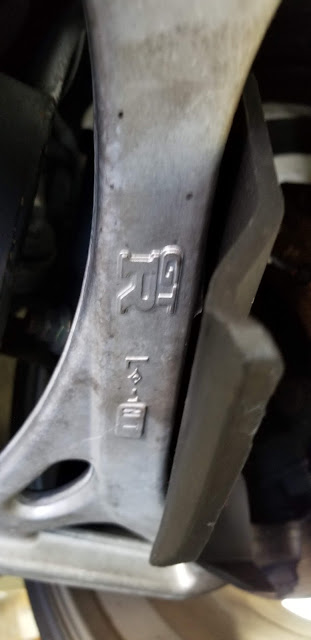

R34 front lower control arm
R34 front lower control arm. It is cast aluminum and one piece in the R34 vs two piece in the R32/R33

R34 GT-R brake deflectors
R34 GT-R brake deflectors


You can set that air deflector is doing its best to direct some air at the center of the rotor. However we have a caliper, a axle all in the way.

R32 Vspec OEM rubber brake deflector
R32 Vspec OEM rubber brake deflector

R32 GT-R Air Guide N1, and Vspec

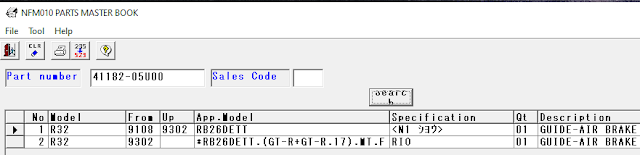

This from the parts master shows it on the N1 and Vspec R32 GT-R

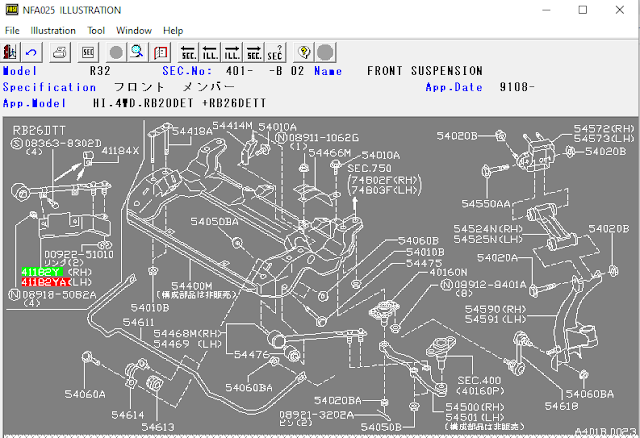

Front suspension parts showing brake air guide

Brake cooling ducts with hose on R32 GT-R
Brake cooling ducts with hose on R32 GT-R
