FS5R30a Rebuild

FS5R30a Nissan Skyline transmission with the case off

This gearbox is getting a rebuild/upgrade with parts from Speedtek by Ernie Fixmer. The center plate is replaced with a billet piece. The gears will get changed for a longer 1st, and closer 2nd, 3rd, and 4th gears. Then a longer 5th gear.  Speedtek Close Ratio Transmission gearset

1st 2.69

2nd 1.69

3rd 1.24

4th 0.99

5th 0.70

OEM Ratios for R32/R33 FS5r30a and R34 V160

Normal R32/R33	1 3.214	2 1.925	3 1.302	4 1.000	5 .752
275/40/17 -	46 mph	77mph	114 mph	148 mph	197 mph
RPM Drop on 8000 shift	8000 rpm	4750 rpm	5400 rpm	6250 rpm	6000 rpm
Final Ratio - 4.111
Normal R34	1.3.827	2. 2.360	3. 1.685	4. 1.312	5 1.000	6 0.793
245/40/18	45 mph	73 mph	102 mph	131 mph	172 mph	217 mph
Final Ratio- 3.545

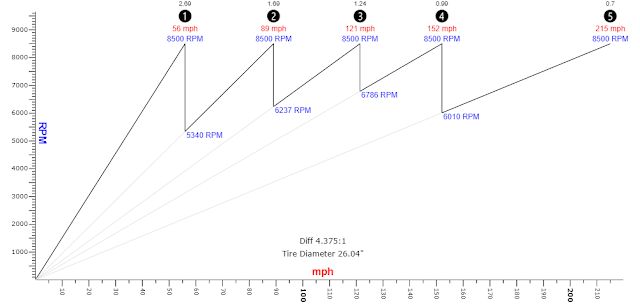

Gear ratios - speeds in gears

Speedtek gearset, 255/50/16 tire, 4.375 gears, 8500 rpm shifts

Nissan gearbox codes F = Floor Shift S = Overdrive 5 = five forward gears R30 = gearbox series A = first revision

Transfer case removed from transmission

Nissan Skyline Transmission information

Slider bearing shift fork shaft (shift rail) - Bearing- Ball Slide

32898-01G10 x2

Transmission Shim 33218M

32218-01G11               SHIM-BRG 0.88

32218-01G12               SHIM-BRG 0.96

32218-01G13               SHIM-BRG 1.04

32218-01G15               SHIM-BRG 1.28

32218-01G16               SHIM-BRG 1.36
